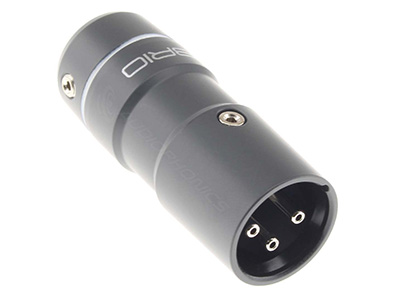

ETI BRIO XLR Male 3-Pole Connector Rhodium-Plated Tellurium Copper Ø12mm White (Unit) - pris pr stk

This XLR 3-pin male ETI BRIO connector is a top-of-the-range connector designed with top-quality components. The contacts are made of Rhodium-plated Tellurium copper for increased conductivity and resistance to oxidation and corrosion.

PrisNOK1 260,00 inkl. mva.
  • Produktinfo
  • Produktanmeldelser (0)

ETI BRIO CONNECTEUR XLR

XLR Male 3-Pole Connector Rhodium-Plated Tellurium Copper Ø12mm White (Unit)

ETI BRIO XLR Male 3-Pole Connector Rhodium-Plated Tellurium Copper Ø12mm White (Unit)

This XLR 3-pin male ETI Brio connector is a top-of-the-range connector designed with top-quality components. The contacts are made of rhodium-plated tellurium copper for increased conductivity and resistance to oxidation and corrosion.

In this connector, ETI has corrected a recurring problem in many XLR connectors on the market, namely too much ground causing higher capacitance, which affects sound. The brand has also studied the question of pin thickness. The result of this research is that the best thickness for low-voltage connectors is 0.6mm. A greater or lesser thickness would have a negative effect on reproduction quality.

For the connector body, ETI uses brass and a PTFE dielectric insulator, a structure that not only reduces vibration but also rejects EMI/RF interference.

Technical Characteristics

SPECIFICATIONS
Product type XLR Connector
Connector gender Female
Pole number 3
Contacts material Tellurium copper
Contacts plating Rhodium
Body material Brass
Insulation PTFE
Max. length 50mm
Max. diameter Ø20mm
Mounting type To weld
Max. cable diameter Ø12mm or Ø8.5mm with reducer
Identification ring White (Left channel)
GENERAL
Color Grey
Weight 50g
Package 1x ETI Brio 3-pin XLR male connector
